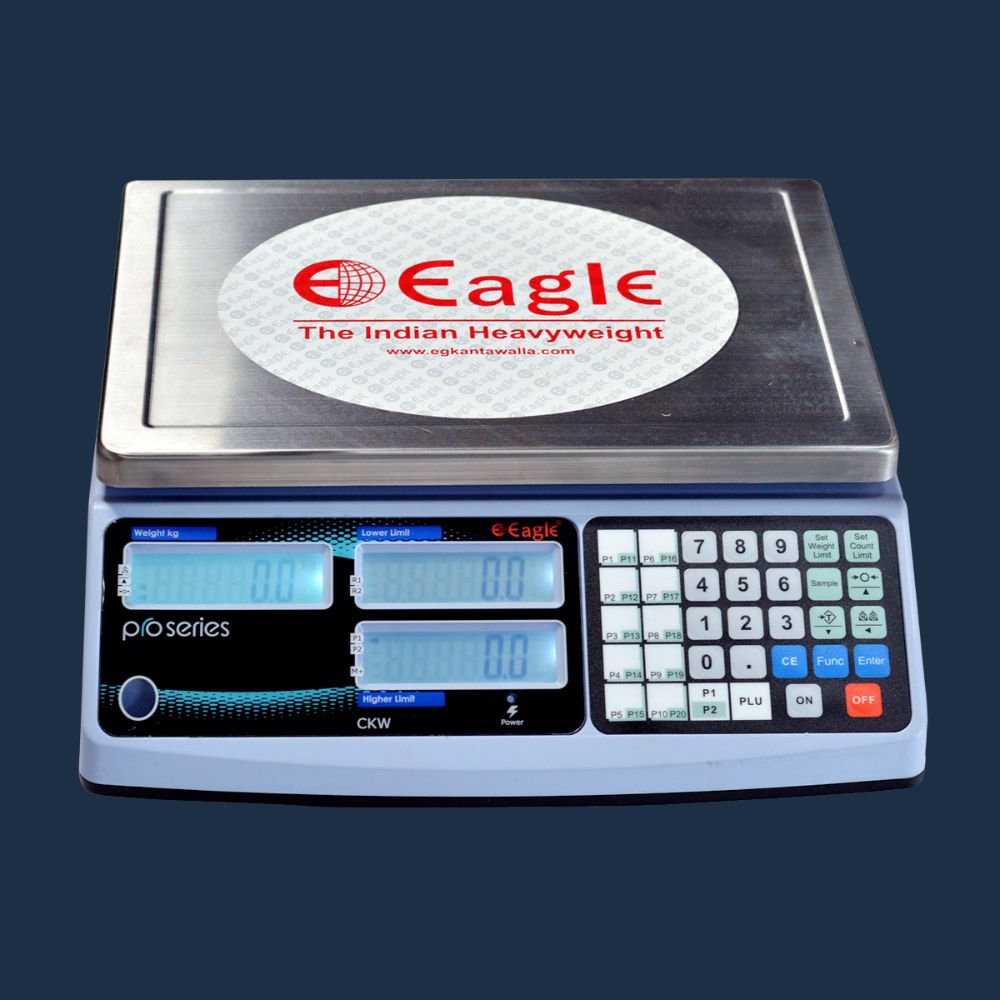

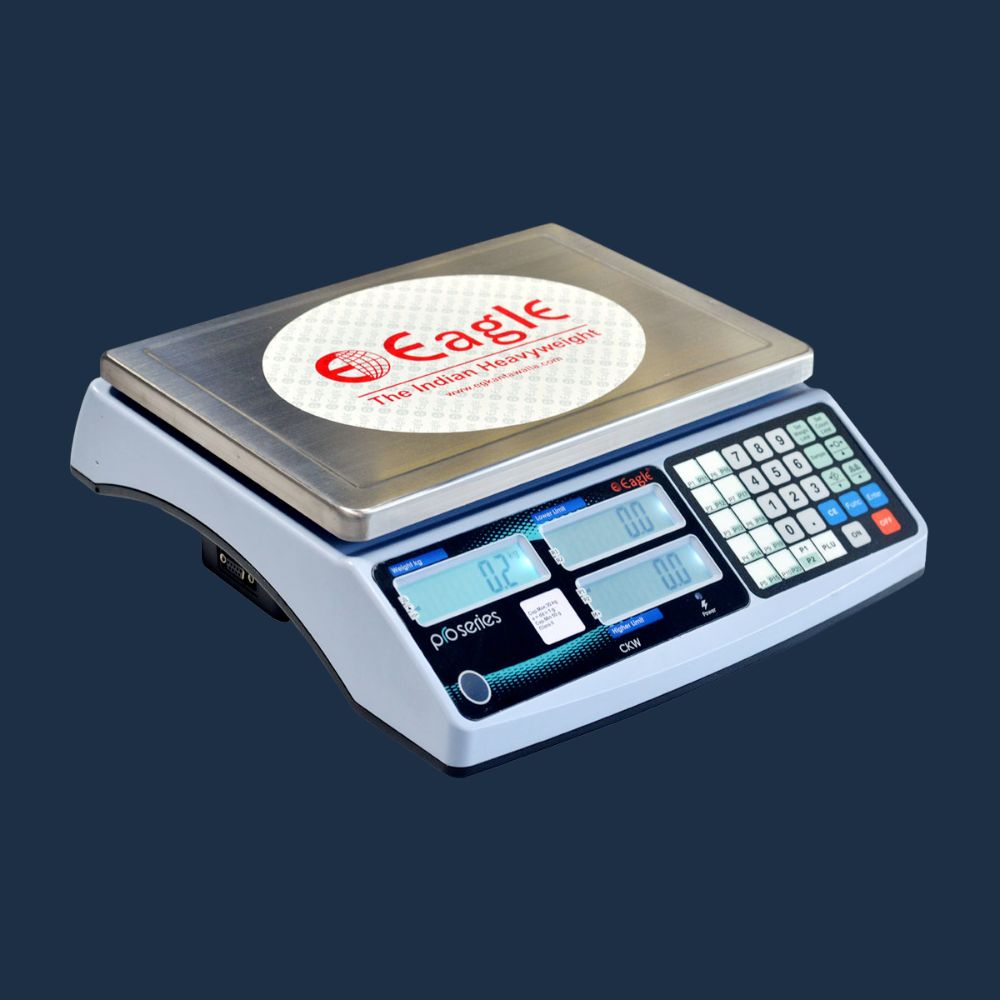

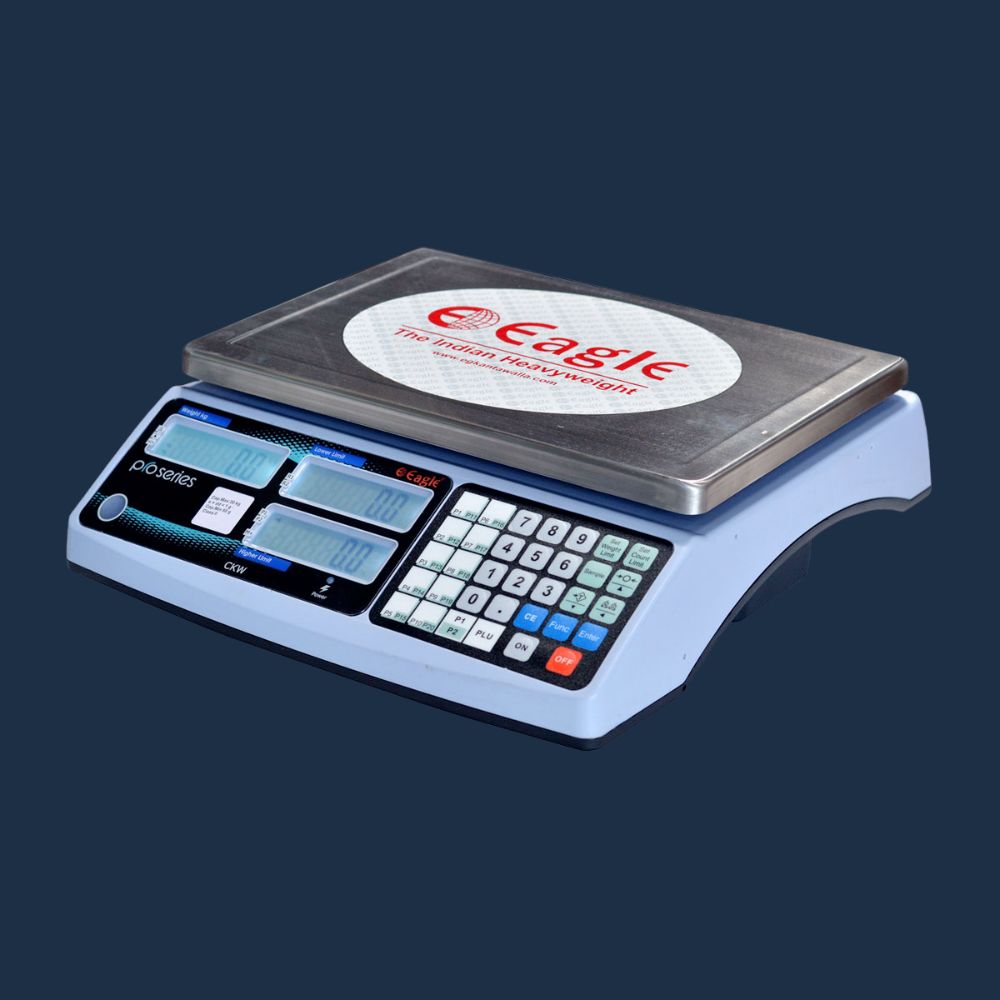

When speed counts, Civa Industrial Solutions Check Weighing Scales are your go-to products. In today's competitive environment, manufacturers not only need to deliver error-free, high-quality products but also maintain high production throughput. Civa Industrial Solutions check weighing scales help achieve both, increasing process efficiency by up to 20% with an advanced LED color weigh design.
Check weighing is a fast and cost-effective quality assurance method. Whether you need to detect missing components in assemblies or complete shipments, control the completeness of castings, or verify the amount of lubricants applied, Civa Industrial Solutions check weighing scales provide clear and precise information to ensure quality specifications are met and shipments are complete.
Physical Dimension: 340 x 320 x 110 mm (±5 mm)
| Parameter | Specification |
|---|---|
| Physical Dimension | 340 x 320 x 110 mm (±5 mm) |
| Net Weight | 3 kg Approx. |
| Weight Sensor | Aluminum Load Cell (Mavin Make) - IP65 |
| Processor | 32 Bit ARM Processor |
| Keyboard | 34 Tactile Keys |
| Display Type | 7 Segment LCD with Symbol Color Changing Backlight |
| Display Window | Single Window (Weight, Counts, Unit Weight) |
| Display Size | 18 mm (Front Display) |
| Platter Size | 315 x 220 mm |
| Repeatability | ± 1d |
| Linearity | ± 1d at Half Load & ± 2d at Full Load |
| Creep | ± 2d (3 Minutes at Full Capacity) |
| Calibration | External Calibration (Software Based) |
| Power Supply | 160V to 230V AC, 50–60 Hz |
| Power Consumption | < 5 Watts |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 95% RH (Non-Condensing) |
| Battery Capacity | 6V / 4.5 AH |
| Over-load | 100% of Scale Capacity +9e |
| Safe-load | 150% of Scale Capacity |
| Stabilisation Time | < 3s |
| Internal Resolution | 20,00,000+ Counts |
| Download Product Catalogue | |
| Model Approval No. |
