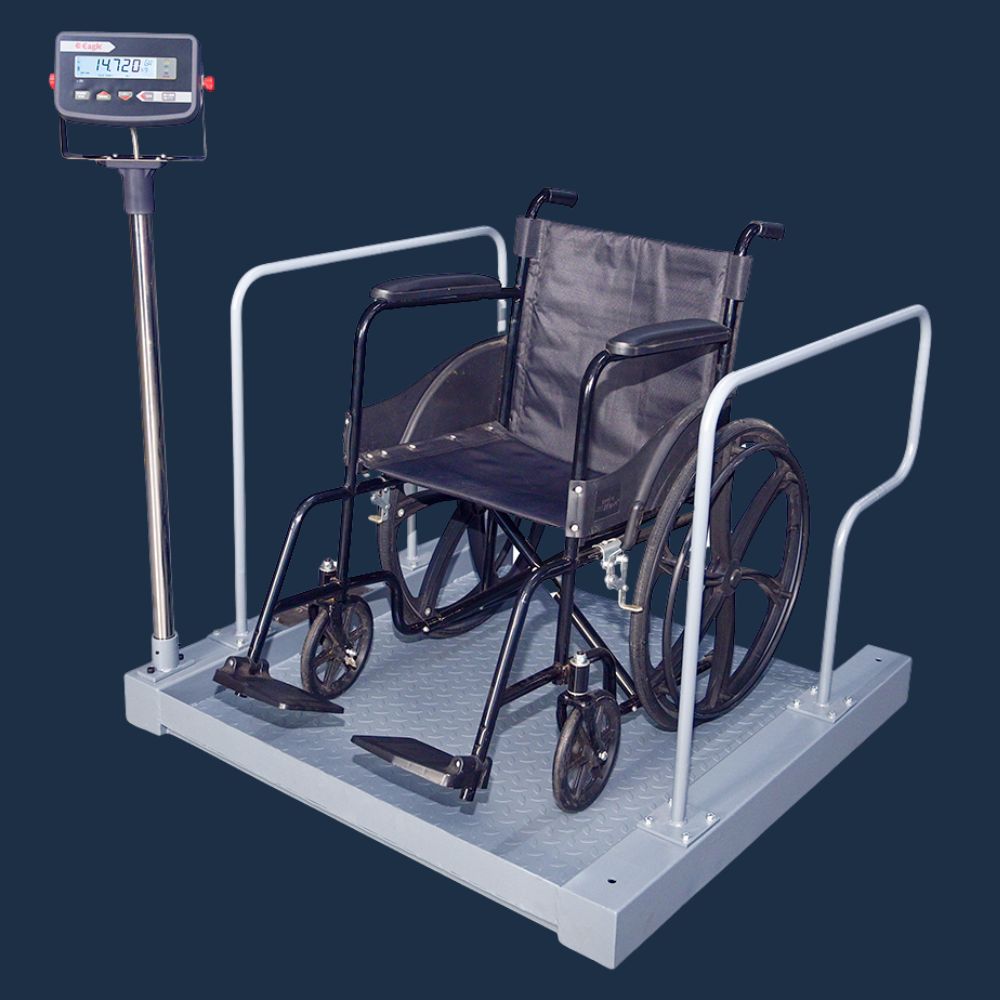

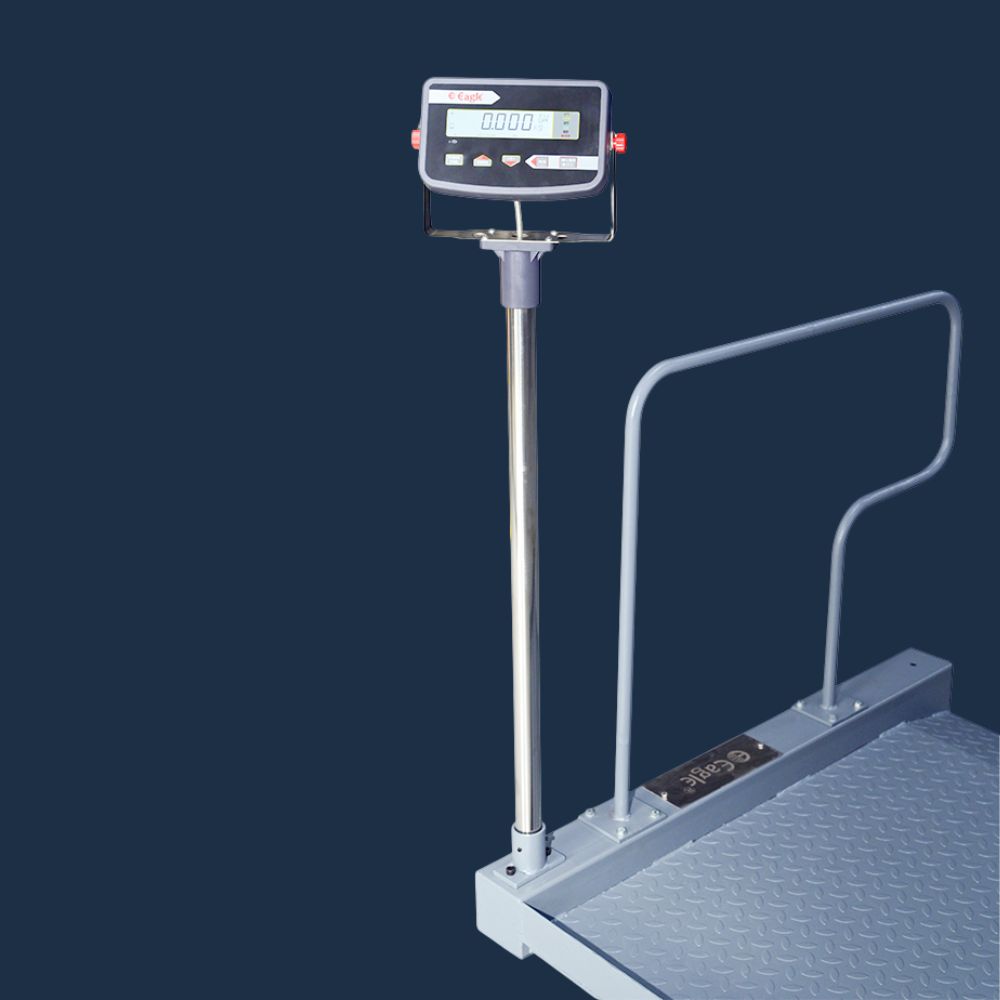

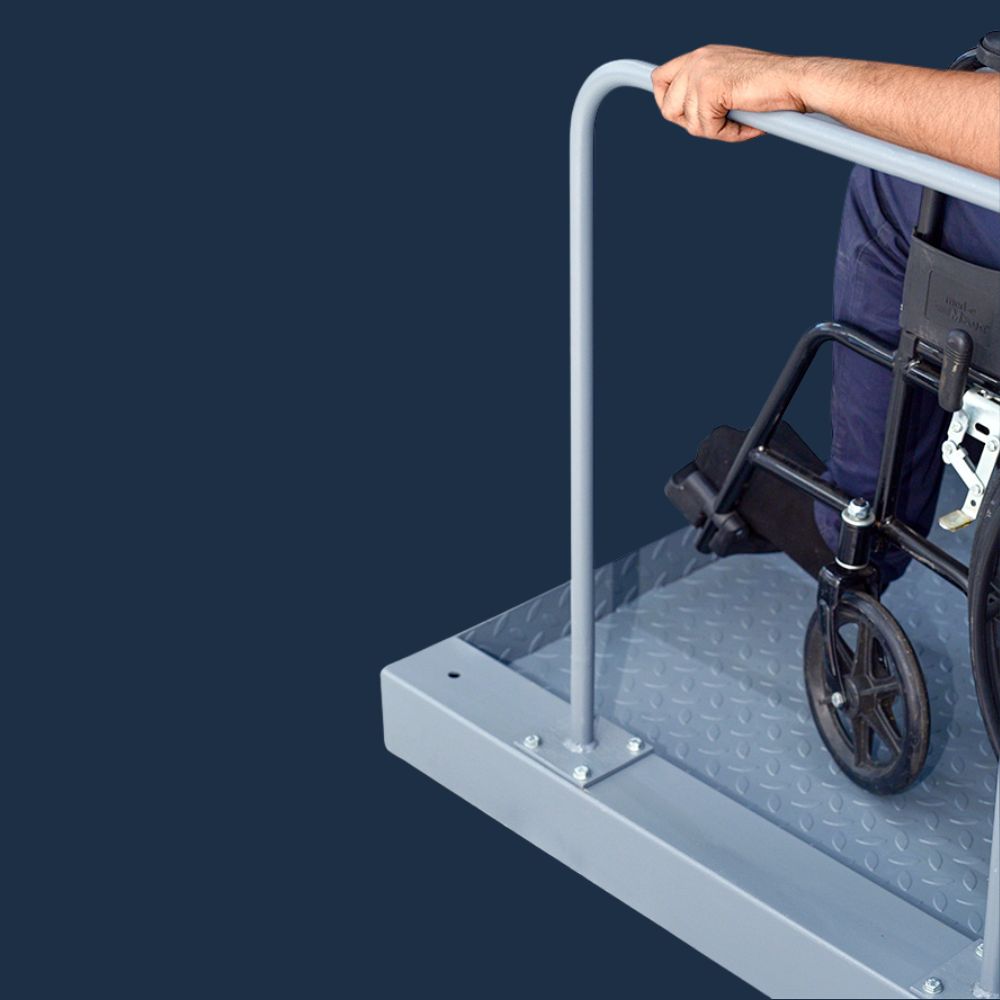

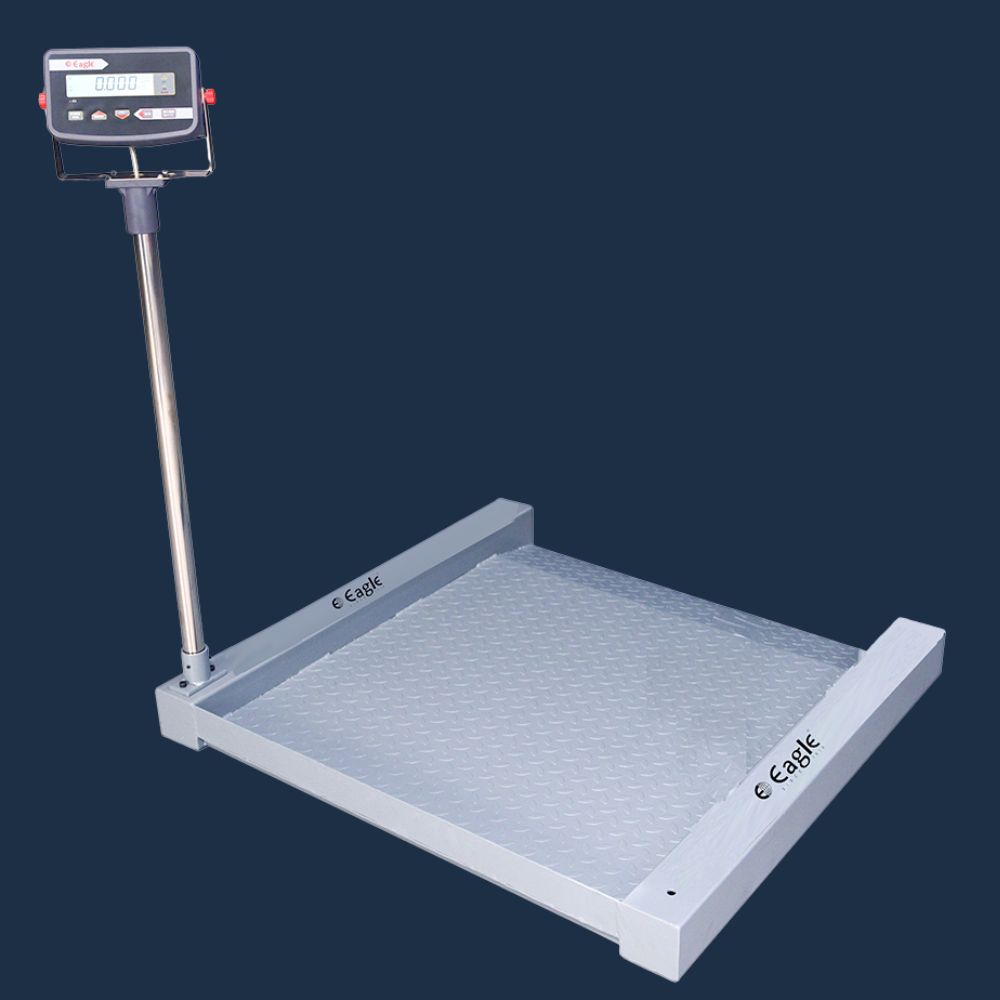

Civa Industrial Solutions heavy-duty wheelchair scale, gives digital speed and increased accuracy that only electronic weighing can provide. The display is mounted on a pole with adjustable bracket, so that it can be positioned wherever it’s easiest for the patient and medical professional to view. Clear define key pad for all scale functions speeds up the weighing process, providing the weight of patients instantly on the Nebula indicator. Sturdy steel construction and a ramp with non-skid surface further ease wheelchair weighing operations. The scale also features RS232 serial and optional Bluetooth for connectivity to healthcare softwares. Powered by AC Adaptor and Lithium battery.
| Parameter | Specification |
|---|---|
| Assembly | Mild Steel Platform with Chequered Surface |
| Weight Sensor | Steel IP68 Loadcell – 4 pcs |
| ADC Type | 24 Bit Sigma Delta |
| Minimum Input Voltage | < 1 mV |
| Minimum Input Sensitivity | 0.1 microvolt per interval |
| Analog Input Range | 0 mV to 15 mV |
| Loadcell Support | Up to 4 Loadcells (350 ohm – 4 wire technique) |
| Keypad | Mechanical Keys – 5 Keys |
| Display Type | LCD / LED |
| Display Digit Height | 20 mm |
| Calibration Method | Key Based Calibration (in Kilograms) |
| Power Connector | Adaptor 5V – 2.4A |
| Power Supply | 110V – 230V AC, 50 Hz |
| Operating Temperature | 0°C to +50°C |
| Battery Capacity | 7.4V – 2600 mAh Lithium Battery |
| LCD Backlight Colors | White, Red, Green, Blue, Yellow |
| Model | Capacity | Division | Platform Size | Platform MOC | Display | No. of Loadcells |
|---|---|---|---|---|---|---|
| EIW WC0909 PRO | 200 kg | 50 g | 900 × 900 mm | Mild Steel with Chequered Surface | LCD / LED | 4 pcs – Steel IP68 |
| Download Wheelchair Weighing Scale Product Catalogue |
